RadRover Step-Thru 1 Electric Fat Bike
Preorder Now - $1,999.00 CAD
RadRover Step-Thru 1
Electric Fat Bike
Availability:
$1,999.00 CAD
Shipping: Free to all Provinces
Quick, easy financing with PayBright
$200 CAD off your purchase when you buy any 2 ebikes with code 2xEbikeCombo
View all technical specs

Most popular accessories

View all accessories

Step-Thru to Adventure

We built the RadRover to go anywhere and do anything. Now, it’s designed to fit anyone.

Introducing the RadRover Step-Thru, a low-step electric fat bike that combines the rugged look and capabilities of our flagship model with a new frame style that meets the needs of all riders.

With a lower standover height and less distance between you and the handlebars, the RadRover Step-Thru makes it easier than ever to get on and get going -- all without sacrificing the power, strength, and durability that made the RadRover, its inspiration, North America’s best-selling electric fat bike.

Technical specs

Electronics
Battery
48V, 14 Ah (672 Wh) with Lithium NCA 18650 Samsung 35E cells, rated for 800 charge cycles

Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on both 110V and 230V AC power outlets

Controller
48V, 500W

Display
Backlit LCD with charge indicator, speedometer, odometer, trip odometer, pedal assist level, wattmeter, and more
Hub Motor
500W brushless Bafang geared hub motor with 80 Nm of torque, 5:1 planetary gear reduction

Lights
Front: Standard Rad Power Bikes LED headlight
Rear: Integrated taillight with brake light

Pedal Assist
Intelligent 5 level pedal assist with 12 magnet cadence sensor
Throttle
Half twist throttle

Wiring
Water resistant connectors and wiring harness

USB Ports
Display: 5V, .5 Amp
Bike Components
Brake Calipers
Tektro Aries (MD-M300)

Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch and integrated bell

Brake Pad Material
Sintered metal

Brake Rotors
Tektro 180 mm front and rear

Chain
KMC Z7

Crank Set
42T, 170 mm ProWheel Pioneer forged alloy, dual-sided aluminum bashguard

Derailleur
7-Speed Shimano Acera

Fenders
Full coverage front and rear

Fork
RST spring fork with lockout and preload adjustment, 80 mm travel, 135 mm hub width, 9 mm quick release
Frame
6061 aluminum

Freewheel
DNP 7-speed freewheel, 11-34T

Gearing
1 x 7-speed

Grips
Durable imitation leather ergo

Handlebar
Custom formed aluminum, 700 mm wide, 4" rise

Headset
Semi-integrated, 1-1/8" straight steerer tube

Kickstand
Heavy-duty aluminum with wide plastic foot

Pedals
Wellgo B087 CrMo axle, forged aluminum platform with reflectors, standard 9/16" x 20 TPI threading

Racks
Optional
Rims
Double wall, 36H

Saddle
Velo Plush with lifting handle

Seatpost
Promax, 350 mm x 27.2 mm

Seatpost Clamp
Quick release

Shifter
Shimano SL-TX50-7R thumb shifter, 7-speed

Spokes
12-gauge stainless steel, black

Stem
50 mm + 30º (15 mm rise)

Tires
Rad Power Bikes by Kenda Juggernaut 26" x 4", K-Shield puncture-resistant liner

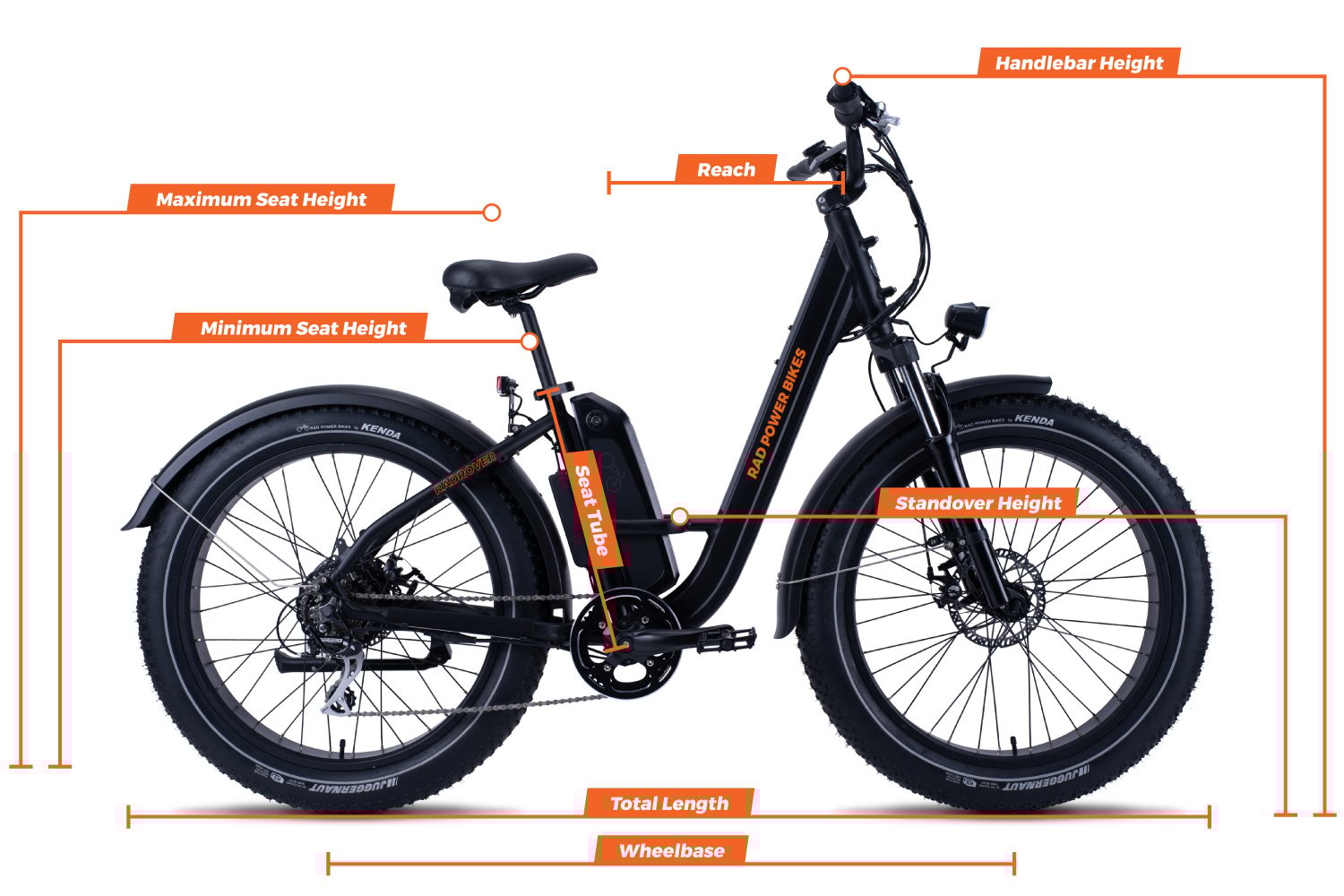

Geometry & Sizing
Recommended Rider Heights
5'0" - 6'2" (152 cm - 188 cm)

Frame Size
18" (46cm)

Handlebar Height
47.5" (121cm)

Handlebar Reach
16" (41cm)

Seat Height
28" - 37" (71cm - 94cm)
*Measured from bottom of the pedal stroke

Standover Height
20.25" (51cm)

Total Length
75" (191cm)
Wheelbase
46" (117cm)

Dropout Width
Front: 135 mm
Rear: 170 mm

Bottom Bracket Shell Width
100 mm
Square Taper Bottom Bracket

Seat Tube Length
18" (46cm)

Top Tube Length (effective)
23" (58cm)

Headtube
146 mm

Chainstay
19.75" (50cm)
Handlebar Width
700 mm

Crank Length
170 mm

Seatpost Diameter
27.2 mm

Max Tire Width
4"

Bike Weight
71 lb (32 kg)

Payload Capacity
275 lb (125kg)
Key Features
7-Speed, 11-34 Tooth Freewheel
A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintain pedal authority at top speed.
Reflective Sidewall Striping
Extremely durable and have a larger total reflective surface and better visibility than traditional spoke mounted reflectors.
Integrated Brake Light
Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.
500W Bafang Geared Hub Motor
80 Nm of torque to conquer hills and power through loose terrain like never before.
Front Suspension Fork
Our custom Rad Power Bikes RST suspension fork has 80 mm of travel, preload adjustment, and lockout.
Twist Grip Throttle
500W of power on-demand.
Low-Step Frame Design
Featuring a 51 cm stand over height, 26 cm shorter than the RadRover 5, this bike is perfect for those needing a more approachable package without sacrificing features or functionality.
Display Technology
Odometer
Speedometer
Wattmeter
Battery Life
USB Charging
Pedal Assist Level
Battery Life
A fuel gauge for your electrons.

Pedal Assist Level
The higher the number, the more the motor will boost you when you pedal.

USB Charging
5V, .5 Amp port to charge your phone or portable electronics on the go.
Odometer
Calculate how many miles you didn't drive this year and how much money you saved on gas.

Speedometer
Can be set to current speed, max speed, or average speed.

Wattmeter
Shows how much power the motor is outputting at any given time.

The Rad Battery Pack

With over a decade of designing and building ebikes under our belts, we know that a high-capacity battery like this isn’t something you cheap out on. We designed and built our batteries using genuine Samsung 35E cells, which are some of the most energy-dense and reliable lithium-ion cells on the market today. These cells have allowed us to build an overall better battery, and at only 7.7 lb, it's one of the lightest and most energy-dense packs on any electric bike.
40-72+
Kilometers per Charge
5-6 Hours
To Fully Charge
672 Wh
Total Battery Capacity

Compact, Discreet, Maintenance-Free Hub Motor

With 500W and 80 Nm of torque at your disposal, this Bafang geared hub motor is what is going to help power you up steep inclines and get you up to top speed quickly from a dead stop, all while remaining quiet and inconspicuous. These kinds of numbers aren't even found on some of the most expensive mid drive systems out there, so prepare to outperform and outclass everyone you see on the road.
500W
Motor Power
80 Nm
Max Motor Torque

Our RadRover community is rad. And massive.
@radpowerbikes #radrover #riderad
Looking for something more traditional?

The RadRover 5 is a great option if you want many of the same features as the RadRover Step-Thru but with a high step frame.
Explore RadRover
