RADMINI

RADMINI

Step-Thru | 2019

Step-Thru | 2019

$1,999 CAD

Don't let the "mini" in its name fool you. Sure, the RadMini Step-Thru has our lowest stand over height ever and can quickly fold when you need some extra room, but this ebike packs quite the punch when you're ready for action and adventure. Power, convenience, and remarkable accessibility make the RadMini Step-Thru a truly unique addition to any arsenal.

FREE SHIPPING to all Provinces | Shipping Details

$200 CAD OFF YOUR PURCHASE when you buy any 2 ebikes with code 2xEbikeCombo

Meet the RadMini Step-Thru

40-72+ KM

Per Charge (estimate)

32 KM/H

Top Speed

500W

Geared Hub Motor

48V 14 Ah

Lithium-Ion Battery

40-72+ KM

Per Charge (estimate)

32 KM/H

Top Speed

500W

Geared Hub Motor

48V 14 Ah

Lithium-Ion Battery

  • Recommended rider heights: 147 cm - 178 cm
  • Rad Power Bikes by Kenda Kraze 20" x 4" Tires, K-Shield Puncture-Resistant Liner
  • Integrated headlight and tail light with brake light functionality
  • Half twist throttle and intelligent 5 level pedal assist
  • Robust low-step folding frame design
  • Full LCD display including speedometer, wattmeter, and odometer
  • Front suspension fork with rebound adjustment and lockout, 60 mm of travel
  • 7-speed Shimano Altus drivetrain
  • 180 mm Tektro mechanical disc brakes
  • Total payload capacity: 125 kg
  • Bike Weight: 31 kg

TWO FRAME STYLES

RadMini Step-Thru

RadMini

RADMINI STEP-THRU KEY FEATURES

Don't let the "mini" in its name fool you. Sure, the RadMini Step-Thru has our lowest stand over height ever and can quickly fold when you need some extra room, but this ebike packs quite the punch when you're ready for action and adventure. Power, convenience, and remarkable accessibility make the RadMini Step-Thru a truly unique addition to any arsenal.

Folding Frame Design

Reduce your footprint without sacrificing power. The RadMini can quickly and easily be folded to make transporting and storing the bike a breeze. With two folding points (one on the handlebar stem and one in the middle of the frame), you can turn your rugged, all-terrain powerhouse into a discreet, convenient mode of transportation.

500W Bafang Geared Hub Motor

The Bafang geared hub motor gives you 80Nm of torque to get you to a top speed of 32km/h with ease. Conquer hills and power through loose terrain like never before.

NEW IN 2019: 4" Fat Tires with Kenda K-Shield Puncture Resistant Tires

Made from a layer of aramid and ceramic particles inside the tire under the tread, the Kenda K-Shield integrated tire liner is a line of defense designed to provide extra protection against punctures from thorns, glass, and other small materials.

Low-Step Frame Design

Mount and dismount the RadMini Step-Thru with ease. Featuring a 406mm stand over height, this bike is perfect for those needing a more approachable package without sacrificing features or functionality.

48V 14Ah Lithium-Ion Battery with Samsung 35E Cells

Our 48V 14Ah (672Wh) batteries give you an estimated 40-72+ km per charge while maintaining a sleek profile.

Front Suspension Fork

Our custom Rad Power Bikes RST suspension fork has 60mm of travel, preload adjustment, and lockout. Combined with the fat tires, you're in for one smooth ride.

NEW IN 2019: Reflective Sidewall Striping

The new reflective tire sidewall striping removes the need for the orange wheel reflectors attached to the spokes like on our previous model generations. These reflective sidewalls are more durable and have a larger total reflective surface for increased visibility during night time rides. They look pretty sweet too, but that's not really a "feature".

Twist Grip Throttle

Get 500W of power on-demand with the twist grip throttle. The included on/off button helps prevent accidental activation and allows you to only use the throttle when you want to.

NEW IN 2019: 7-Speed, 11-34 Tooth Freewheel

Giving you a wider range of gearing at your disposal, the 7-speed, 11-34T freewheel means you can shift into the lowest gear for those treacherous uphill climbs or shift into the highest gear and still maintain pedal authority at top speed.

NEW IN 2019: Integrated Brake Light

The integrated tail light is powered using the main battery pack and also features brake light functionality that is activated any time the brakes are applied. The new tail light will turn on along with the headlight for increased night time visibility and still maintains the brake light functionality. It also keeps the strobe feature, which can be toggled using the button located on the tail light.

180mm Mechanical Disc Brakes

Front and rear 180mm Tektro Aries mechanical disc brakes provide you with strong stopping power, even in loose terrain. Stop faster when it counts the most.

RADMINI STEP-THRU KEY FEATURES

Don't let the "mini" in its name fool you. Sure, the RadMini Step-Thru has our lowest stand over height ever and can quickly fold when you need some extra room, but this ebike packs quite the punch when you're ready for action and adventure. Power, convenience, and remarkable accessibility make the RadMini Step-Thru a truly unique addition to any arsenal.

Folding Frame Design

Reduce your footprint without sacrificing power. The RadMini Step-Thru can quickly and easily be folded to make transporting and storing the bike a breeze. With two folding points (one on the handlebar stem and one in the middle of the frame), you can turn your rugged powerhouse into a discreet, convenient mode of transportation.

500W Bafang Geared Hub Motor

The Bafang geared hub motor gives you 80Nm of torque to get you to a top speed of 32km/h with ease. Conquer hills and power through loose terrain like never before.

NEW IN 2019: 4" Fat Tires with Kenda K-Shield Puncture Resistant Tires

Made from a layer of aramid and ceramic particles inside the tire under the tread, the Kenda K-Shield integrated tire liner is a line of defense designed to provide extra protection against punctures from thorns, glass, and other small materials.

Low-Step Frame Design

Mount and dismount the RadMini Step-Thru with ease. Featuring a 406mm stand over height, this bike is perfect for those needing a more approachable package without sacrificing features or functionality.

48V 14Ah Lithium-Ion Battery with Samsung 35E Cells

Our 48V 14Ah (672Wh) batteries give you an estimated 40-72+ km per charge while maintaining a sleek profile.

Front Suspension Fork

Our custom Rad Power Bikes RST suspension fork has 60mm of travel, preload adjustment, and lockout. Combined with the fat tires, you're in for one smooth ride.

NEW IN 2019: Reflective Sidewall Striping

The new reflective tire sidewall striping removes the need for the orange wheel reflectors attached to the spokes like on our previous model generations. These reflective sidewalls are more durable and have a larger total reflective surface for increased visibility during night time rides. They look pretty sweet too, but that's not really a "feature."

Twist Grip Throttle

Get 500W of power on-demand with the twist grip throttle. The included on/off button helps prevent accidental activation and allows you to only use the throttle when you want to.

NEW IN 2019: 7-Speed, 11-34 Tooth Freewheel

Giving you a wider range of gearing at your disposal, the 7-speed, 11-34T freewheel means you can shift into the lowest gear for those treacherous uphill climbs or shift into the highest gear and still maintain pedal authority at top speed.

NEW IN 2019: Integrated Brake Light

The integrated tail light is powered using the main battery pack and also features brake light functionality that is activated any time the brakes are applied. The new tail light will turn on along with the headlight for increased night time visibility and still maintains the brake light functionality. It also keeps the strobe feature, which can be toggled using the button located on the tail light.

180mm Mechanical Disc Brakes

Front and rear 180mm Tektro Aries mechanical disc brakes provide you with strong stopping power, even in loose terrain. Stop faster when it counts the most.

2019 Lineup Technical Overview

Learn More About Kenda K-Shield Tires

SPECS

  • Electronics
  • Bike Components

BATTERY
48V 14Ah (672Wh) with Lithium NCA 18650 Samsung 35E Cells, Rated for 800 Charge Cycles

CHARGER
48V 2 Amp Rad Power Bikes Smart Charger, Operates On Both 110V and 230V AC Power Outlets

CONTROLLER
48V, 500W

DISPLAY
Backlit LCD with Charge Indicator, Speedometer, Odometer, Trip Odometer, Pedal Assist Level, Wattmeter, and More

HUB MOTOR
500W Brushless Bafang Geared Hub Motor with 80Nm of Torque and 5:1 Planetary Gear Reduction

LIGHTS
Front: Spanninga PR60 48V with Ambient Light Sensor Option
Rear: Integrated Taillight with Brake Light Indicator Functionality

PEDAL ASSIST
Intelligent 5 Level Pedal Assist with 12 Magnet Cadence Sensor

THROTTLE
Half Twist Throttle with On/Off Button

WIRING
Water Resistant Connectors and Wiring Harness

USB PORTS
Display: 5V, .5 Amp

BRAKE CALIPERS
Tektro Aries (MD-M300)

BRAKE LEVERS
Aluminum Alloy Comfort Grip Levers with Motor Cutoff Switch, Integrated Bell

BRAKE PAD MATERIAL
Sintered Metal

BRAKE ROTORS
Tektro 180mm Front and Rear

CHAIN
KMC Z7

CRANK SET
48T, 170mm ProWheel Ounce, Dual-Sided Aluminum Bashguard

DERAILLEUR
7-Speed Shimano Altus

FENDERS
Optional

FORK
RST Spring Fork with Lockout and Preload Adjustment, 60mm Travel, 135mm Hub Width, 9mm Quick Release

FRAME
6061 Aluminum

FREEWHEEL
DNP 7-Speed Freewheel, 11-34T

GEARING
1 x 7-Speed

GRIPS
Durable Imitation Leather Ergonomic Grips

HANDLEBARS
Custom Formed Aluminum, 660mm Wide, 64mm Rise

HEADSET
Semi-Integrated, 1-1/8" Straight Steerer Tube

KICKSTAND
Heavy Duty Aluminum with Wide Plastic Foot

PEDALS
Wellgo P256 CrMo Axle, Forged Aluminum Folding Platform with Reflectors, Standard 9/16" x 20 TPI Threading

RACKS
Optional

RIMS
Double Wall, 36H

SADDLE
Velo Plush with Lifting Handle

SEAT POST
Promax, 350mm x 27.2mm

SEAT POST CLAMP
Quick Release

SHIFTER
Shimano SL-TX50-7R Thumb Shifter, 7-Speed

SPOKES
12 Gauge, Stainless Steel, Black

STEM
High Rise Folding Stem with 76mm Vertical Adjustment

TIRES
Rad Power Bikes by Kenda Kraze 20" x 4", K-Shield Puncture-Resistant Liner

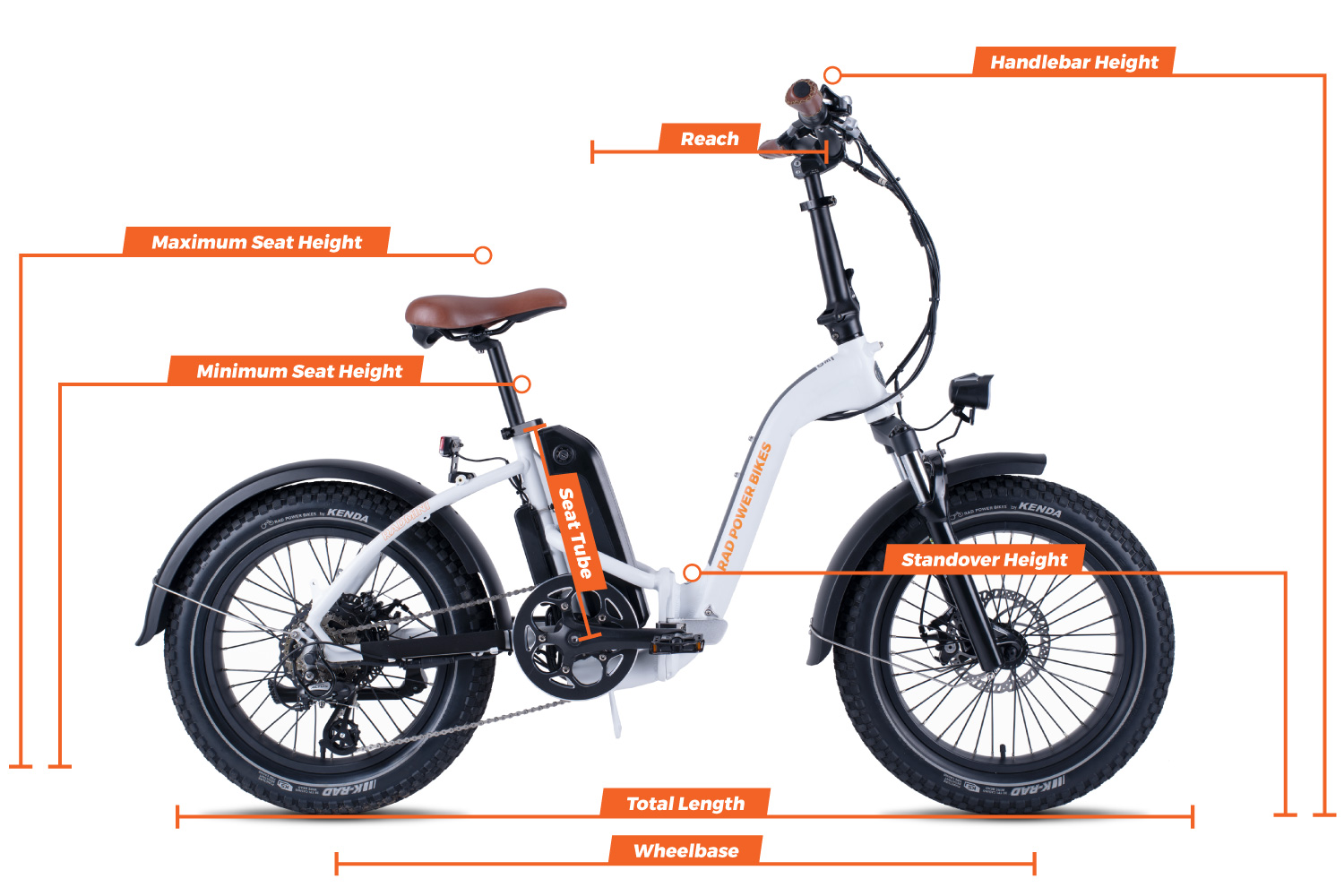

SIZING

FRAME SIZE
14.5"
Recommended Rider Heights: 147cm - 178cm

HANDLEBAR HEIGHT
1105mm - 1181mm(adjustable)

HANDLEBAR REACH
470mm

SEAT HEIGHT
Max: 787mm / Min: 610mm
*Measured from bottom of the pedal stroke

STAND OVER HEIGHT
406mm

TOTAL LENGTH
1727mm

WHEELBASE
1143mm

DROPOUT WIDTH
Front: 135mm / Rear: 170mm

BOTTOM BRACKET SHELL WIDTH
100mm
Square Taper Bottom Bracket

SEAT TUBE LENGTH
368mm

TOP TUBE LENGTH (effective)
N/A

HEAD TUBE
121mm

CHAIN STAY
483mm

HANDLEBAR WIDTH
660mm

CRANK LENGTH
170mm

SEATPOST DIAMETER
27.2mm

MAX TIRE WIDTH
4"

BIKE WEIGHT
31 kg

PAYLOAD CAPACITY
125 kg

FOLDED DIMENSIONS (LxWxH)
1067mm x 610mm x 737mm

PERFORMANCE

48V 14Ah battery

48V and 14Ah of Pure, Clean Power

The single most important component on any ebike is its battery. If you can’t trust the juice flowing through its veins, your ebike is better off sitting in the garage than taking you on your next adventure. With over a decade of designing and building ebikes under our belts, we've seen firsthand the downfalls of using low-quality cells. And trust us, it ain't pretty.

A high-capacity battery like this isn’t something you cheap out on. We designed and built our batteries using genuine Samsung 35E cells, which are some of the most energy-dense and reliable lithium-ion cells on the market today. These cells have allowed us to build an overall better battery, and at only 3.5 kg, it's one of the lightest and most energy-dense packs on any electric bike.

40-72+ KM

Per Charge (estimate)

5-6 HOURS

To Fully Charge

672 Wh

Total Capacity

Compact, Discreet, Maintenance-Free

Since the beginning, we've been huge fans of hub motors for their performance, ease of use, and versatility. The 500W Bafang Geared Hub Motor is the epitome of why we love hub motors and it is only natural we’ve outfitted the RadMini Step-Thru with it.

With 500W and 80Nm of torque at your disposal, this motor is what is going to help power you up steep inclines and get you up to top speed quickly from a dead stop, all while remaining quiet and inconspicuous. Those kind of numbers aren't even found on some of the most expensive mid drive systems out there, so prepare to outperform and outclass everyone you see on the road.

32KM/H

Top Speed

500W

Motor Wattage

80Nm

Max Torque

750W Bafang geared hub motor

SAFETY

Ebikes should be fun, reliable, and most importantly, safe. We make safety a top priority in every product we make, which includes investing in the best components and features to make sure your bike takes as good of care of you as you do of it.

DISPLAY

All the information you need at the tips of your fingers.

The Rad Power Bikes LCD display provides you with all the information you need when out on a ride. It's securely mounted directly to the handlebars and the display angle can be adjusted to accommodate different sized riders.

Speedometer

Full speed ahead with the large speed display, can be set to current speed, max speed, or average speed.

Pedal Assist Level

Indicates the pedal assist level. The higher the number the more the motor will boost you when you pedal.

Battery Life

A fuel gauge for your electrons.

Trip Odometer

See how far you go on your next epic adventure.

USB Charging

Charge your phone or portable electronics on the go with the provided USB port.

Wattmeter

A handy power meter to show you how much electricity you are using at any given time.

Odometer

Calculate how many kilometers you didn't drive this year and how much money you saved on gas!
